EVOLUTION CS2 DISPLAY CAL EMISSIONS

$499.95

-

0 in stock (remainder available 3 to 7 days)

Product Description

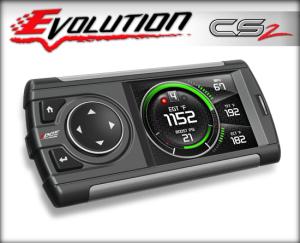

Edge Diesel Evolution CS2, California Version

The Edge Products Evolution CS2 for your GM Duramax, Ford Powerstroke & Dodge Cummins is an all-in-one programmer and gauge display. It not only programs the vehicle to improve power and performance, but also doubles as a gauge display.

The gauges display vital information about the vehicle and can also act as a scan tool for reading and clearing trouble codes.The CS2 connects directly into the vehicle via the OBDII port and can read and display up to 8 parameters at a time. The CS2 display can be easily changed and configured to allow the user to view the most relevant data.

There is also safety features with user defined audible and visual alerts as well as performance test features, such as 0-60 and quarter mile times. The monitor is equipped with a light sensitivity meter that automatically adjusts screen brightness for better viewing for both day and night driving.

The CS2 model features a full-color high resolution 2.4- inch, button-controlled screen and is designed to work in conjunction with the Edge Accessory System (EAS) which allows users to connect  future accessories to the product such as exhaust gas temperature (EGT) sensors and many more accessories!

Features:

  • Ford Diesel D-541-7/541-13, GM Diesel D-541-12/D-541-14, Dodge/Ram Diesel D-541-8 & D-541-10
  • Power levels for Mileage, Towing and Performance
  • 8 Pre-Loaded Back Grounds
  • Full-color, high resolution and button-controlled 2.4 inch screen
  • Compatible with EAS devices
  • Internet updateable
  • Displays and clears codes (DTC)
  • Displays Alerts and Records such as RPM,MPH, and EGT
  • 0-60 and Quarter-Mile performance test
  • Displays up to 8 parameters at a time in digital display mode
  • Monitors and displays DPF status on 2007+ emission diesel trucks
  • Includes heavy-duty suction cup mount.

Applications:

  • 2001 – 2015 6.6 L Duramax LB7, LLY, LBZ, LMM, and LML (2016+ CARB Pending)
  • 2003 – 2012 Dodge Diesel
  • 2008-2010 Ford Powerstroke 6.4 L (2011+ CARB Pending)

Power Levels:

  • 01-05 LB7, LLY Duramax- Up To: 100 HP & 210 Ft-lbs.
  • 06-07 LLY, LBZ Duramax -Up To: 100 HP & 220 Ft-lbs.
  • 07.5-10 LMM Duramax -Up To: 85 HP & 200 ft-lbs.
  • 11-15 LML Duramax- Up To: 81 HP & 170 ft-lbs.
  • 2016 LML Duramax (CARB Pending)- Up To: 115 HP & 220 ft-lbs.
  • 08-10 Ford 6.4 L Powerstroke- Up to: 88 HP & 134 FT-LBS
  • 03-04 Dodge 5.9 L Cummins- Up To: 120 HP & 270 ft-lbs.
  • 04.5-05 Dodge 5.9 L Cummins- Up To: 130 HP & 270 ft-lbs.
  • 06-07 Dodge 5.9 L Cummins- Up To: 130 HP & 270 ft-lbs.
  • 07.5-09 Dodge 6.7 L Cummins Up To: 115 HP & 240 ft-lbs.
  • 10-12 Dodge 6.7 L Cummins Up To: 95 HP & 240 ft-lbs.*

*Will not fit 2011 Cummins w/Manual Trans

Part Number: EDG85301

Additional information

Weight2.0 lbs
Brand

Part NumberEDG85301
