MPROP, FCA CUMMINS 4992596

Product Description

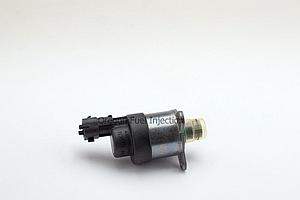

OE Fuel Control Actuator, FCA, Cummins 4992596

New OE Bosch FCA for Cummins application Bosch CP3 pump.

A common CP3 pump related failure on Cummins is the fuel control actuator (FCA), referred to by Bosch as an MPROP. The FCA is the metering device, that directs fuel to the pumping plungers for the CP3 injection pump.

If the FCA is sticky, stuck or not working properly, the ECM cannot quickly command the FCA to the correct position and control how much fuel it should be delivering. Or it may cause a surge, excess smoke, or poor throttle response, because it is slow to respond. In most cases, people first know there is an issue when they have a hard start or no start issue because the FCA will not allow the pump to properly build pressure to start. The FCA has probably been delivering less than the desired amount of fueling and is usually a slow death, due to wear, and not an immediate failure.

If you’re experiencing hard start or no start issues, one easy way to confirm whether the FCA is causing the issue is to simply unplug it, thus eliminating any metering. Presuming the truck starts, immediately shut it off as you will have maximum fuel rail pressure, but now you have a potential culprit with the FCA causing the issue. However, on the 5.9L we do see a lot of injector issues that cause a hard start / no start, particularly on cold start.

Part Numbers: 4992596, 0928400711, 1465ZS0080

Part Number: 1465ZS0080
