Product Description

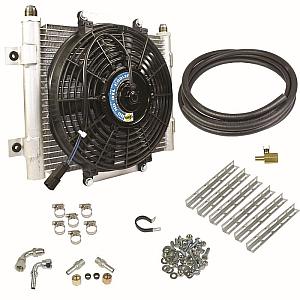

BD Xtruded Transmission Cooler kit 3/8 inch lines
The BD Xtruded transmission oil cooler offers 22% more cooling over other designs. The core has 200 micro extruded passages and a larger surface area to transfer heat for external air flow cooling. Large 5/8-inch ports prevent restriction in the inlet and outlet. A turbulent oil flow design promotes a more complete cooling of the fluid. The core is capped furnace brazed rails that are tested to 300psi of pressure.
Mounted on the cooler is a thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan. The fan circulates cool air through the core to aid in cooling. The cooler unit is rated at 33,930 BTU/HR and in excess of 30,000 GVW!
The kits come complete with all fittings, clamps, hoses and hardware. The Build-It-Yourself galvanized bracket kit for quicker and cleaner installation – no wasting time fabricating brackets out of scrap metal. A pre-wired and loomed harness with fuse and relay comes with plug-in connectors for easy installation.
Fits:
- Chevy 1999-2000 4L80E – 3/8-inch Cooler Lines
- Ford 1999-2003 4R100 – 3/8-inch Cooler Lines
Part Number: 1030606-3/8
