TRANSMISSION KIT 4R100 99-03 4WD

Product Description

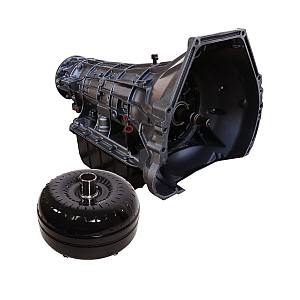

BD Performance TowMaster Transmission & Torque Converter Package, 99-03 Ford 4R100 4WD

The stock drivetrain was designed to handle the output of the stock engine, but not much more. BD Performance transmissions use revised oil circuits, extra clutches and stronger parts to handle up to 300% more power and torque than the stock transmission. All BD Performance transmissions come with a heavy-duty transmission pan. Transmission kit comes bundled with their auxiliary Full Flow Transmission Filter kit for added protection and cooling! Not warranted for Race or Sled Pull use.

OEM transmission helical gears and engine torque thrust causes stock plastic and Babbitt thrust washers to fail. The contaminated oil and damages solenoids and valves. BD removes the thrust washers and installs roller bearings throughout the transmission which reduces oil contamination, maintains tolerances, reduces heat, and prevents premature solenoid failure.

Overview:

TRANSMISSION:

• Increase the durability of your drivetrain
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Re-calibrated accumulator body
• Quicker, firmer shifts
• Full shift kit with line mod valve to increase pressures
• Increased pressure to converter
• Added lube circuits to OD planet
• Added lube and support to output and intermediate shafts
• Drilled and tapped direct and intermediate feeds to prevent leaks at case
• Upgraded OD snap ring
• Machined center support
• Reworked front pump
• Fully rollerized geartrain
• Clutch Count: COAST CLUTCH 2
• Clutch Count: FORWARD 5 (25% increase over stock)
• Clutch Count: DIRECT 5
• Clutch Count: LOW REVERSE 7 (17% increase over stock)
• Clutch Count: INTERMEDIATE 4 (33% increase over stock)
• Clutch Count: OVERDRIVE 4 (33% increase over stock)
• Each transmission is dyno tested
• 1990-2003 include auxiliary frame mounted full flow filter kit

TORQUE CONVERTER:

• Enhanced Stall – Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material

Rated to 500 rear wheel HP
