INJECTION LINE #4 VAN 7.3 IDI

Product Description

# 4 Cylinder Injection Line 7.3 IDI Van

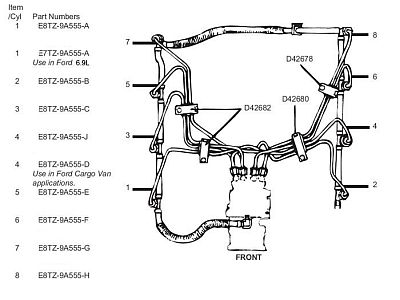

Number 4 injection line for the E series Van Application with the 6.9 and 7.3 Ford IDI diesel. # 4 cylinder is the second one back on the driver’s side.

Fits: 1983, 1984,1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994

Line failures happen due to two common causes. Missing line clamps cause excessive vibration and breakage. Over torque will damage the injection line as well, proper torque is 22 lb ft.

Part Numbers: E8TZ-9A555-D, DE8TZ-9A555-D



Part Number: DE8TZ-9A555-D
