Product Description

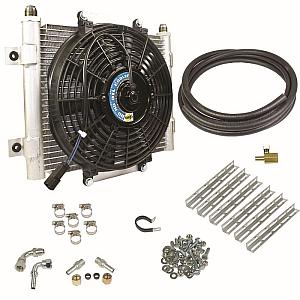

BD Xtruded Transmission Cooler kit 5/8 inch lines

The BD Xtruded transmission oil cooler offers 22% more cooling over other designs. The core has 200 micro extruded passages and a larger surface area to transfer heat for external air flow cooling. Large 5/8-inch ports prevent restriction in the inlet and outlet. A turbulent oil flow design promotes a more complete cooling of the fluid. The core is capped furnace brazed rails that are tested to 300psi of pressure.

Mounted on the cooler is a thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan. The fan circulates cool air through the core to aid in cooling. The cooler unit is rated at 33,930 BTU/HR and in excess of 30,000 GVW!

The kits come complete with all fittings, clamps, hoses and hardware. The Build-It-Yourself galvanized bracket kit for quicker and cleaner installation – no wasting time fabricating brackets out of scrap metal. A pre-wired and loomed harness with fuse and relay comes with plug-in connectors for easy installation.

Fits: 2001, 2002, 2003, 2004, 2005, 2005, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 Chevy Allison 1000 – 5/8-inch Cooler Lines

Part Number: 1030606-5/8

Additional information

Weight18.0 lbs

Part Number1030606-5/8
